Fundamentals of Network Engineering: Essential Network Protocols - ICMP and UDP - Part 2

Network Protocols: The Language of the Internet

Network protocols are the language of the Internet. Let’s look at two fundamental ones: ICMP for diagnostics and UDP for simple, fast transmissions.

ICMP (Internet Control Message Protocol)

• Purpose: Designed for network diagnostic and control messages
• Features:
  • Transmits informational messages like “host unreachable,” “port unreachable,” or “fragmentation needed”
  • Reports when packets expire (caught in routing loops)
  • Uses IP directly (not TCP or UDP)
  • Underpins tools like ping and traceroute
  • Requires no open ports or listeners
  • Helps with MTU (Maximum Transmission Unit) discovery
  • If blocked, creates a “TCP black hole” where critical information cannot reach source machines

Example: Ping pravin.dev

Different tcpdump command to check ip packets

# ping any server for which you want to see packets.
ping pravin.dev

# use this to see packet dump for en0 interface
tcpdump -i en0 arp
tcpdump -n -i en0 icmp
tcpdump -n -v -i en0 icmp

# filter packets using source and destination IP address
tcpdump -n -v -i en0 icmp src 185.199.111.153 or dst 185.199.111.153
tcpdump -n -v -i en0 src 185.199.111.153 or dst 185.199.111.153

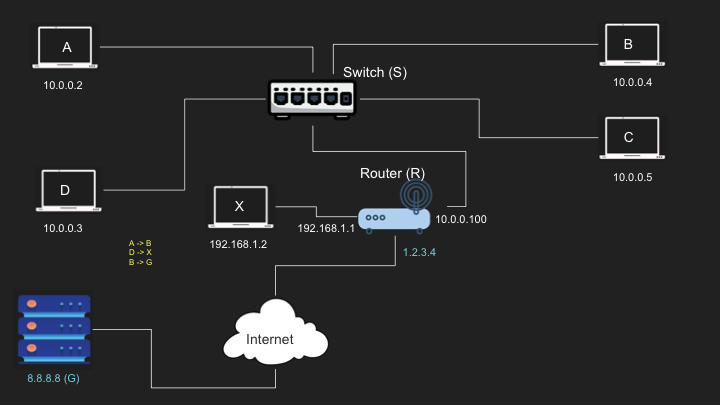

Routing of IP packets through various devices like routers, switches, etc.

UDP (User Datagram Protocol)

Basic Characteristics:

• Layer 4 protocol
• Addresses processes using ports
• Simple protocol for data transmission
• Requires no prior communication (stateless)
• Compact 8-byte header (vs. IP’s 20-byte header)

Common UDP Applications:

• Video streaming
• VPN services
• DNS queries
• WebRTC communications

UDP Advantages:

• Simplicity
• Small header size and bandwidth efficiency
• Stateless operation
• Lower memory consumption
• Low latency with no handshakes or delivery guarantees

UDP Disadvantages:

• No acknowledgment mechanism
• No guaranteed delivery
• Connection-less (anyone can send data)
• No flow or congestion control
• No packet ordering
• Potential security vulnerabilities (easily spoofed)

Demo Example

Terminal 1:

❯ tcpdump -n -v -i en0 src 8.8.8.8 or dst 8.8.8.8 #(Listen to Google DNS )

Terminal 2:

❯ nslookup pravin.dev 8.8.8.8

Server: 8.8.8.8
Address: 8.8.8.8#53
Non-authoritative answer:

Name: pravin.dev
Address: 185.199.111.153

Name: pravin.dev
Address: 185.199.109.153

Name: pravin.dev
Address: 185.199.108.153

Name: pravin.dev
Address: 185.199.110.153

Back to Terminal 1:

tcpdump: listening on en0, link-type EN10MB (Ethernet), snapshot length 524288 bytes

22:13:22.540384 IP (tos 0x0, ttl 64, id 51364, offset 0, flags [none], proto UDP (17), length 56)

192.168.0.229.61141 > 8.8.8.8.53: 37528+ A? pravin.dev. (28)

22:13:22.573255 IP (tos 0x0, ttl 55, id 35405, offset 0, flags [none], proto UDP (17), length 120)

8.8.8.8.53 > 192.168.0.229.61141: 37528 4/0/0 pravin.dev. A 185.199.111.153, pravin.dev. A 185.199.109.153, pravin.dev. A 185.199.108.153, pravin.dev. A 185.199.110.153 (92)

previous part

continue to next part

This blog post was compiled from my notes on a Networking Fundamentals course. I hope it helps clarify these essential concepts for you!
