TCP (Transmission Control Protocol)

While UDP offers speed and simplicity, TCP provides reliability. This article delves into the details of the Transmission Control Protocol, its connections, structure, states, and trade-offs.

Basic Characteristics:

  • Layer 4 protocol
  • Process addressing via ports
  • Controlled transmission (unlike UDP’s “firehose” approach)
  • Connection-oriented
  • Requires handshake process
  • 20-60 byte headers
  • Stateful operation

Common TCP Applications:

  • Reliable communications
  • Remote shell connections
  • Database connections
  • Web communications
  • Any bidirectional communication requiring reliability

TCP Connection Details:

  • Operates at Layer 5 (Session)
  • Represents an agreement between client and server
  • Required before data transmission

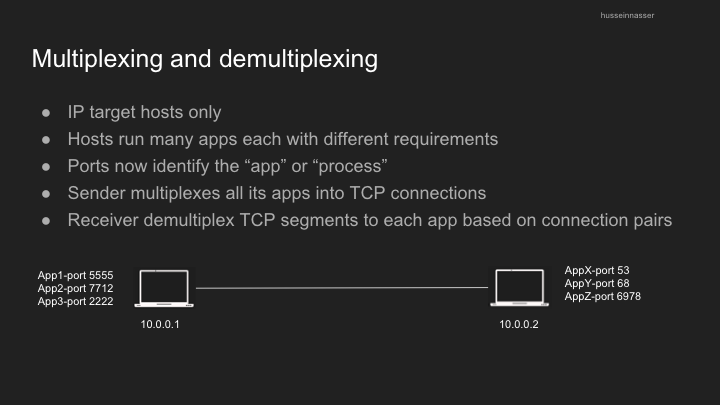

  • Identified by four properties:
    • Source IP
    • Source Port
    • Destination IP
    • Destination Port
  • Sometimes called a socket or file descriptor

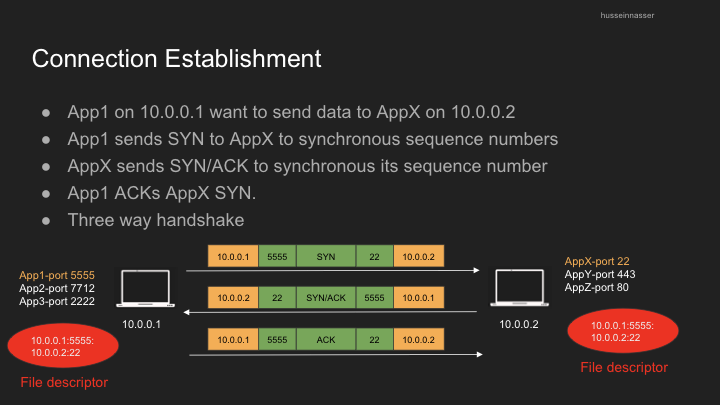

  • Established via three-way handshake
  • Features sequenced and ordered segments

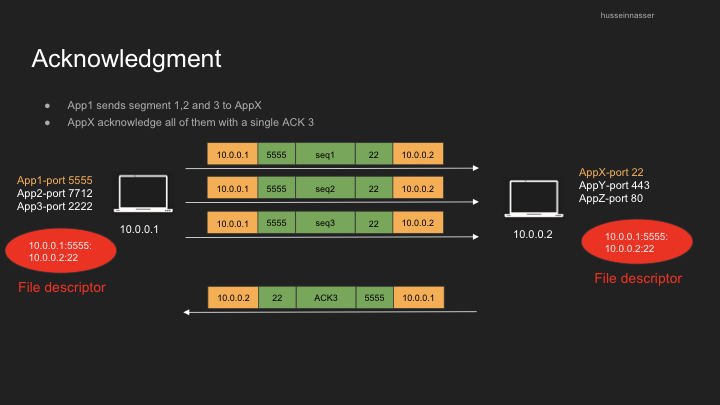

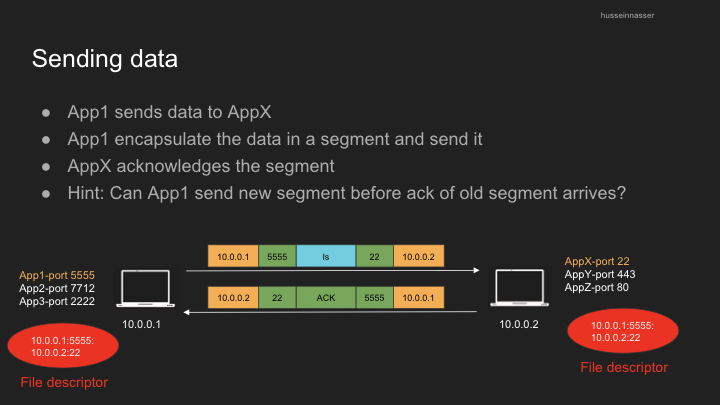

  • Includes segment acknowledgment

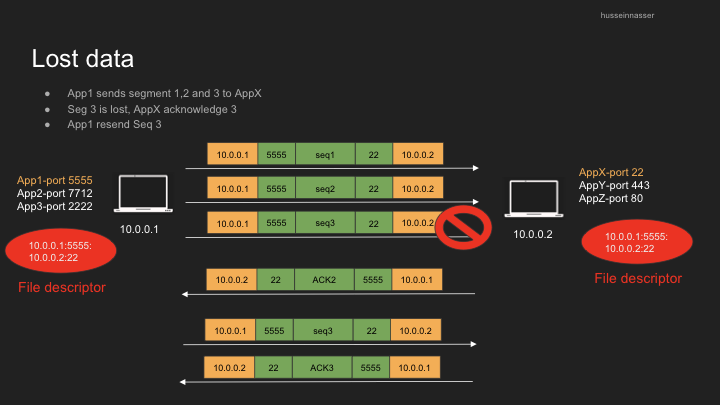

  • Retransmits lost segments

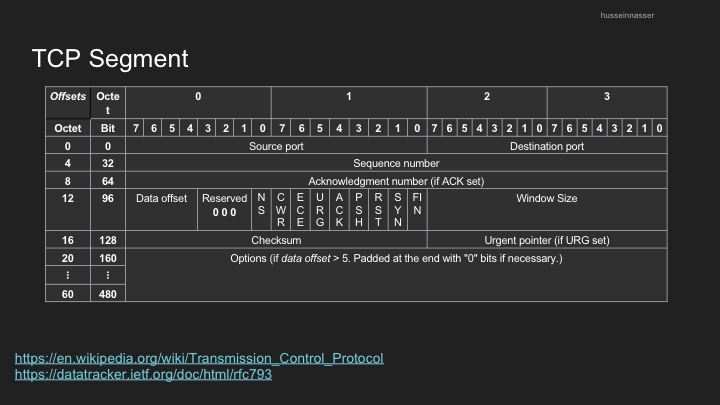

TCP Segment Structure:

  • Header is 20-60 bytes
  • Encapsulated within IP packets as “data”
  • Ports use 16 bits (range: 0-65535)
  • Includes sequence numbers, acknowledgments, flow control mechanisms

TCP Connection States:

TCP maintains connection state on both client and server sides:

  • Tracks window sizes, sequence numbers, and connection status
  • Follows a defined state machine for connection establishment and termination

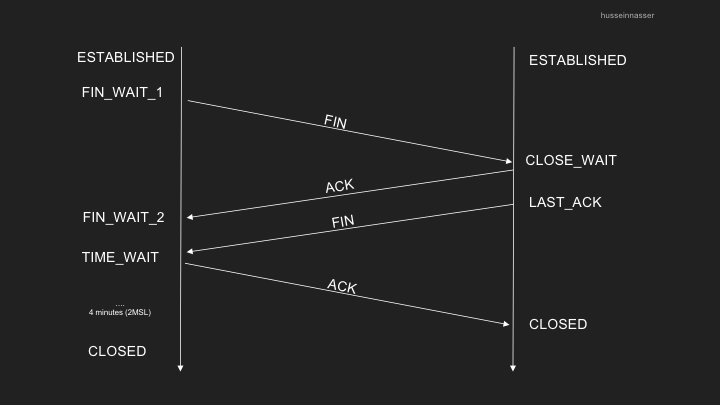

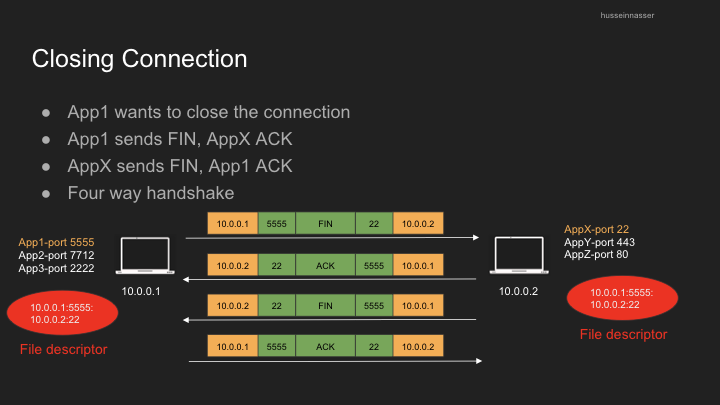

In the above diagram, we can see that 2 entity is interacting to close the TCP connection. Lets assume left side is our backend server and right side is client.

So. server sent FIN_WAIT_1 to say I want to close the connection, client acknowledge that and moved to CLOSE_WAIT state.

In the meantime, client sent FIN request and moved to LAST_ACK state. Server receives it and acknowledge it by moving to TIME WAIT state. It waits for confirmation that acknowledge is received. If acknowledgement is not received as per spec, it will wait for 2 mins before sending another but it will not close the connection without confirmation.

As you see, server is maintaining the state information in file descriptor of the connection and that pipeline is open so port cannot be reused until closed. This takes finite amount of memory.

This is bad can slow down our server. One fix is to notify client to initiate this closure request so our server can close it and it will not have to go in time wait state. We don’t care about client most important thing is sever.

TCP Advantages:

  • Guaranteed delivery
  • Connection-oriented security
  • Flow and congestion control
  • Ordered packet delivery
  • Resistance to spoofing

TCP Disadvantages:

  • Larger header overhead than UDP
  • Higher bandwidth requirements
  • Stateful nature consumes memory
  • Higher latency for certain workloads
  • Complex behavior at low levels
  • Head-of-line blocking issues

Demo Example: Capture TCP segment using TCP DUMP
